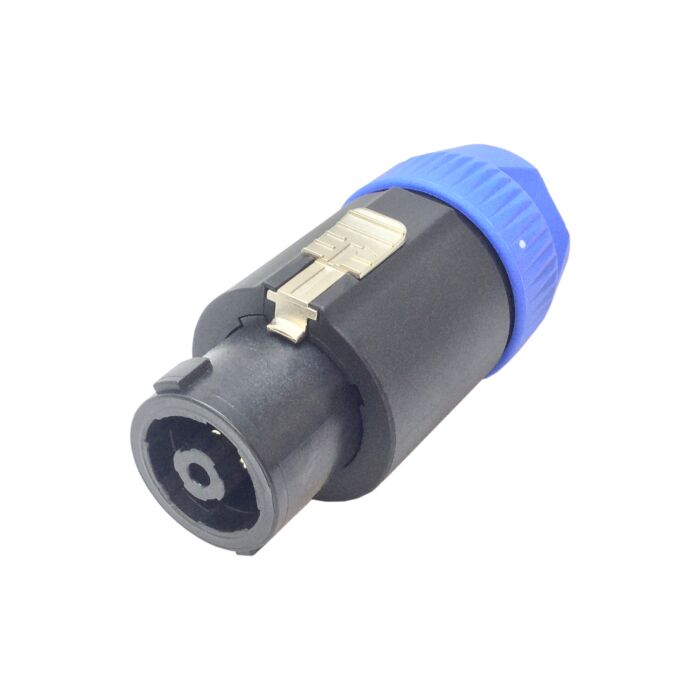

Neutrik NL8FC 8 Pole Plastic Female Speakon Connector. Blue Boot Bushing
£18.79
In stock
We have 124 items in stock!
SKU
SPEAKON_NL8FC
Multibuy discounts calculated at checkout
- Buy 5 for £17.85 each and save 5%
- Buy 10 for £16.91 each and save 10%
- Buy 15 for £15.97 each and save 15%
- Buy 20 for £15.03 each and save 20%
8 pole cable connector, latch lock, chuck type strain relief for cables 8 - 20 mm diameter, 30 A continuous per contact. The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
8 pole cable connector, latch lock, chuck type strain relief for cables 8 - 20 mm diameter, 30 A continuous per contact. The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
Features & Benefits
- Current rating 30 A rms continuous
- Reliable and robust, easy and fast to assemble
- Contacts are touch proof and meet all safety requirements (IEC, UL, CSA)
- Accurate and dependable twist lock latching system "Quick Lock"
- High impact material for insert and housing, long-lasting and dependable
- Chuck type strain relief system for secure clamping of cable
Technical Info
Title - NL8FC
Connection Type - speakON
Gender - female
Electrical
- Contact resistance - ≤ 3 mΩ (after lifetime)
- Dielectric strength - 4 kVdc (peak)
- Insulation resistance - > 1 GΩ (after dampheat)
- Rated current per contact - 30 A rms continuous
- Rated current per contact - 40 A audio signal, duty cycle 50 %
- Rated voltage - 250 V (Insulation)
Attention - speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
- Cable O.D. - 8 - 20 mm
- Cable retention - ≥ 220 N (subject to cable O.D. and material)
- Lifetime - > 5000 mating cycles
- Wiresize - 4 mm²
- Wiresize - 12 AWG
- Wiring - screw type terminals or soldering
- Locking device - Quick Lock (latch)
Material
- Contact plating - 4 µm Ag
- Contacts - Brass (CuZn39Pb3)
- Insert - PBTP 20 % GR
- Locking element - Zinc diecast (ZnAl4Cu1)
- Shell - Polyamide (PA 6 30 % GR)
- Strain relief - Polyacetal (POM)
Environmental
- Flammability - UL 94 HB
- Solderability - Complies with IEC 68-2-20
- Temperature range - -30 °C to +80 °C
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Screw Terminal |
| Contact Material | Silver Plated |
| Number of Contacts | 8 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
