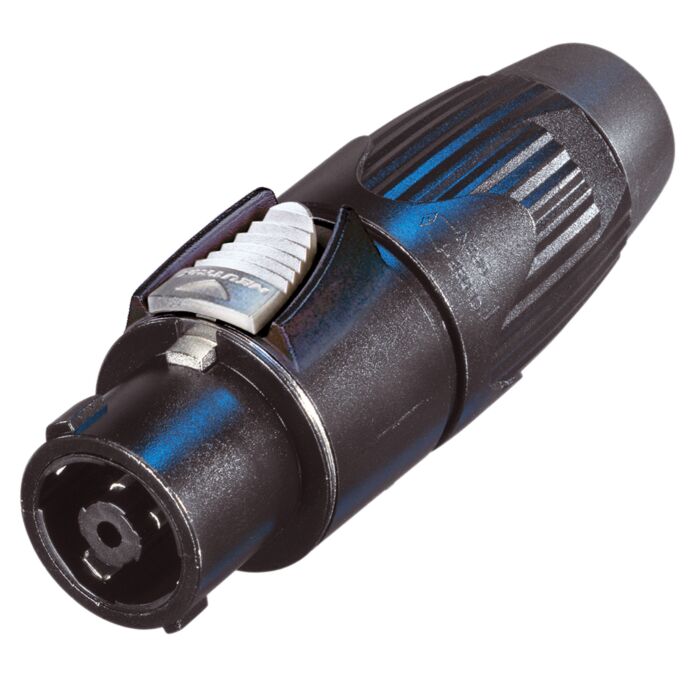

Neutrik NLT8FX-BAG 8 Pole Metal Female Speakon Connector. Solder Type

NLT8FX-BAG

8-pole female cable connector, black-chrome metal housing, solder

Features & Benefits

• Extremely robust metal housing designed for harsh and demanding environment
• Ideal product for touring applications and harsh environments
• Current rating 40 Amp continuous, 50 Amp audio signal with 50% duty cycle
• Uses precise “Quick Lock” system
• Mates with all currently available speakON products

Title - NLT8FX-BAG

Connection Type - speakON

Gender - female

Electrical

Contact resistance - < 2 mΩ (after lifetime)

Dielectric strength - 4 kVdc (peak)

Insulation resistance - > 10 GΩ (after dampheat)

Rated current per contact - 40 A rms continuous

Rated current per contact - 50 A audiosignal, duty cycle 50 %

Rated voltage - 250 V (Insulation)

Attention - speakON is NOT to be used as an AC mains or power supply connector!

Mechanical

Cable O.D. - 8 - 20 mm

Cable retention - ≥ 220 N (subject to cable O.D. and material)

Lifetime - > 5000 mating cycles

Wiresize - 6 mm²

Wiresize - 10 AWG

Wiring - Solder contacts

Locking device - Quick Lock (latch)

Material

Contact plating - 4 µm Ag

Contacts - Spring copper

Insert - Polyamide (PA 6 30 % GR)

Locking element - Zinc diecast (ZnAl4Cu1)

Shell - Zinc diecast (ZnAl4Cu1)

Strain relief - Polyacetal (POM)

Environmental

Flammability - UL 94 HB

Protection class - IP 52 (mated condition)

Solderability - Complies with IEC 68-2-20

Temperature range - -30 °C to +80 °C
