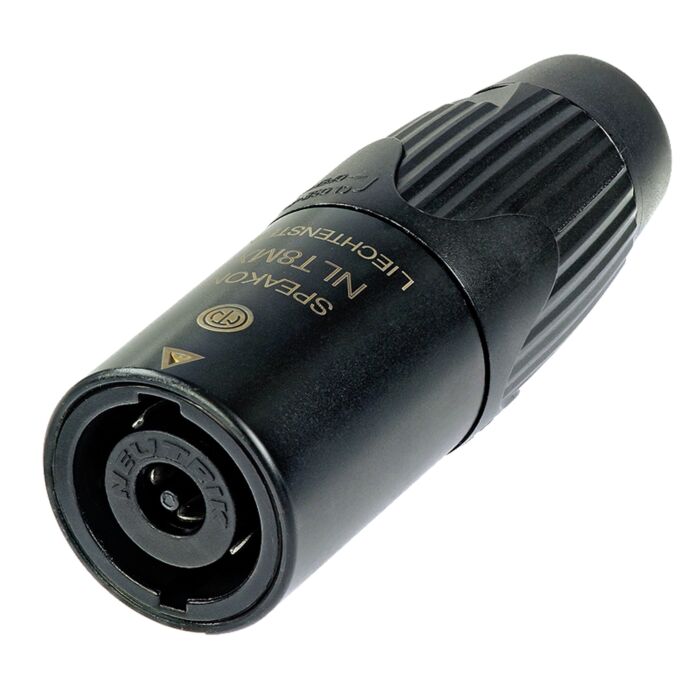

Neutrik NLT8MX-BAG 8 Pole Metal Male Speakon Connector. Solder Type
£37.98
In stock
We have 72 items in stock!
SKU
SPEAKON_NLT8MX-BAG
Multibuy discounts calculated at checkout
- Buy 5 for £36.08 each and save 5%
- Buy 10 for £34.18 each and save 10%
- Buy 15 for £32.28 each and save 15%
- Buy 20 for £30.38 each and save 20%
The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.
The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.
NLT8MX-BAG
8 pole male cable connector, black-chrome metal housing, chuck type strain relief, ¼" flat tabs
Features & Benefits
- Current rating 40 A continuous, 50 A audio signal with 50% duty cycle
- Robust and durable all metal housing
- Reinforced metal quick lock system for ease and precise locking
- Extra large solder contacts for up to 6mm² (AWG10) wires
- Mate with all available speakON products
Technical Info
Title -NLT8MX-BAG
Electrical
- Contact resistance - < 2 mΩ (after lifetime) mΩ
- Dielectric strength - 4 kVdc (peak)
- Insulation resistance - > 10 GΩ
- Rated current per contact - 40 A rms continuous
- Rated current per contact - 50 A audiosignal, duty cycle 50 %
- Rated voltage - 250 V (Insulation)
Attention - speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
- Cable O.D. - 8 - 20 mm
- Cable retention - ≥ 220 N (subject to cable O.D. and material)
- Lifetime - > 5000 mating cycles
- Wiresize - 6 mm²
- Wiresize - 10 AWG
- Wiring - flat tabs for 1/4'' (FASTON® 6.3 x 0.8 mm) or soldering
Environmental
- Temperature range --30 °C to +80 °C
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Contact Material | Silver Plated |
| Number of Contacts | 8 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
