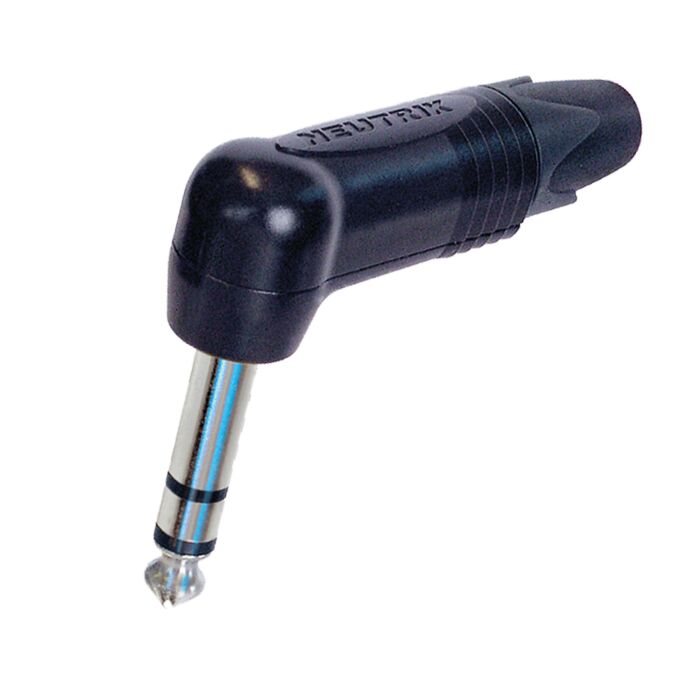

NP3RX-BAG

3 pole 1/4" professional phone plug, nickel contacts, black shell

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Features & Benefits

• Extra slim 1/4" plug for highest packing density
• Robust diecast shell in stylish design
• Proven chuck type strain relief for reliable cable retention
• Sleek design for best handling convenience
• Precision machined one-piece contacts - avoid hook up of tip contact

Electrical

Contact resistance - depends on mating connector mΩ

Dielectric strength - 1 kVdc

Insulation resistance - > 2 GΩ (initial)

Rated current per contact - depends on mating connector A

Rated voltage - < 50 V

Mechanical

Cable O.D. - 4 - 7 mm

Lifetime - > 1000 mating cycles

Wiresize - 1 mm²

Wiresize - 18 AWG

Wiring - Solder contacts

Material

Bushing - Polyacetal (POM) + PU

Contact plating - 2 µm Ni (Su)

Contacts - Brass (CuZn39Pb3)

Insert - Polyamide (PA 6.6 30 % GR)

Shell - Zinc diecast (ZnAl4Cu1)

Shell plating - Black chromium

Strain relief - Polyacetal (POM)

Environmental

Standard compliance - IEC 60603-11 / EIA RS-453

Solderability - Complies with IEC 68-2-20

Temperature range - -20 °C to +65 °C
