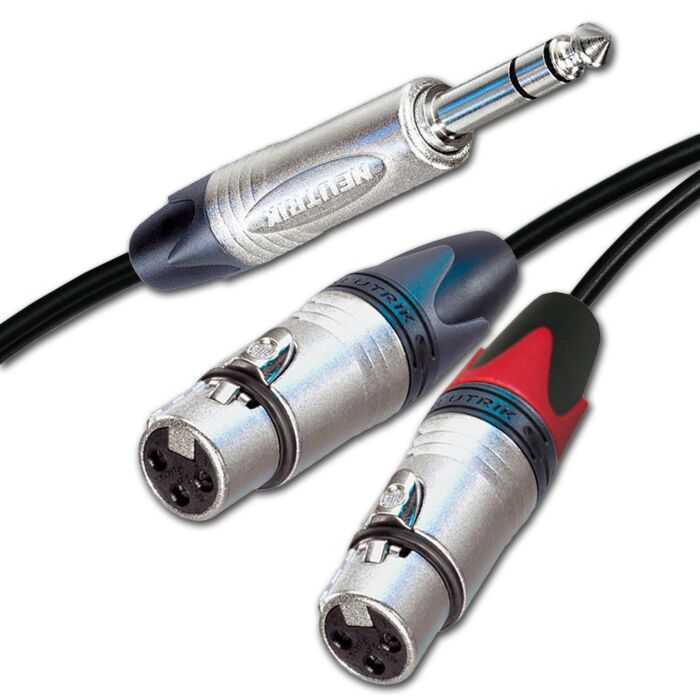

Neutrik Dual Female XLRs Summed to Single Stereo 1/4" TRS jack. Summing lead.

£0.00

Quick Overview

A high quality unbalanced lead that sums together 2x female XLRs into one stereo 1/4" TRS jack. The Female XLR with the red boot is wired to the 'Ring' of the TRS Jack. The black XLR is wired to the Tip. This is a Stereo lead NOT a balanced lead.

Availability: In stock

Check Prime Stock
Ship to: Worldwide
  • Blue
  • Black
+£1.00

Characters left: 15

* Required Fields

£0.00

Details

This is a High quality signal lead that will connect any device with a Stereo (TRS) jack output that needs to be split into two independent mono/unbalanced signals, Left/Right, Send/Return, Tip/Ring. So making it the ideal solution for ‘Insert leads’, ‘Stereo Guitar Leads’ and ‘Splitter Leads’.

The Neutrik Jacks and XLRs are an industry standard product whose reputation speaks for itself, the cable retention inside the connectors is a unique ‘Chuck Type’ that ratchets itself onto the cable. The transparency and depth of sound that you get with the Sommer Onyx 2025 Twin cable and the durability of the connectors make for an excellent lead.

The cable is wired with the ‘ring’ of the Jack going to the ‘right’ Female XLR that is marked red.

**This is NOT a balanced lead.

We sell these leads in a variety of combinations; please see in store for the full selection.

  • Tour Grade Neutrik NP3X Silver 1/4" TRS Jack
  • 2x) Tour Grade Neutrik NC3FXX Silver Female XLRs. Colour coded for 'Left & Right'
  • Sommer Onyx 2025 twin shotgun cable
  • Cable split at approximately 15cm (can be easily modified)
  • Manufactured using 4% silver solder



Additional Information

Prime Link No
Cable Capacitance Capac. cond./shield. per 1 m - 120 pF
Cable Resistance 1 km - 115 Ohm
Cable Conductor Copper spiral shielding Shielding factor - 90 % No. of inner conductors - 2 x 1 x 0,25 mm2
Cable Jacket Jacket, outer dimension PVC - 4,8 x 9,2 mm
Brand.... Sommer
Application.... Tour & Studio Grade
Terminated with.... No
Metal Type.... Silver Plated
Poles 3 Pole
Works with.... No
Special Attribute Splitter
Multicore Options.... No
Wireless System No
