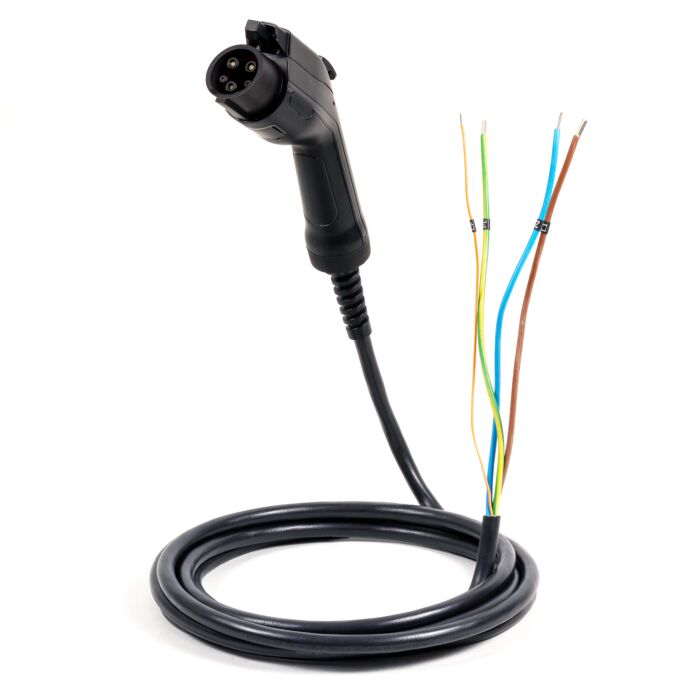

Type 1 EV Charging Cable - Tethered

N.B. Please note that all cables over 45m will need to be confirmed and are made to order, we do not keep these on the shelf. As max charging amperage will be dropped to 16Amps, to allow for voltage drop over the length of the cable. Please email [email protected] before placing your order.

This cable has a Type 1 EV connector at one side only. They should only be used as direct replacements for 'Tethered' cables on EV wall chargers. Reasons for replacing could be either a damaged cable, or to increase the length of the supplied cable, extending the reach of your wall charging point.

Features

• Made in Nottingham UK
• Choose from 25cm to 100m cable length
• Solid Latching Mechanism
• Single Phase up to 32amps (7.4kW) 230v/240v
• Flexible and UV stable cable
• Integral cable strain relief for maximum durability
• Resin filled connector eliminates water ingress and offers unrivalled cable retention
• Cable and connector can withstand being run over
• Complimentary canvas carry bag included

Standards

• Type 1 (J1772) Connector. According to IEC 62196-2 & SAEJ1772
• H07BZ5-F Cable. 3core 6mm² (L,N,E) + 0.5 mm² (CP). According to IEC 62893
• Assembly and Testing. According to IEC 62196-1
• IP Protection Class: IP55 when connected
• IMDS registered
• UKCA & CE Certified

Technical Specification

• Connector housing: Thermoplastic
• Max 32amp Rated (7.4kW) (operates fine with 16amp charge points)
• Operating Temperature: -30℃ to +50℃
• Bare copper ends are supplied ferruled and marked for easy identification and wiring
• Cable and connector can be run over, tested to 2500kg (2.5 tons) on concrete with only superficial damage
