Domestic Type 2 EV Charging Cable

N.B. Please note that all cables over 45m will need to be confirmed and are made to order, we do not keep these on the shelf. As max charging amperage will be dropped to 16Amps, to allow for voltage drop over the length of the cable. Please email [email protected] before placing your order.

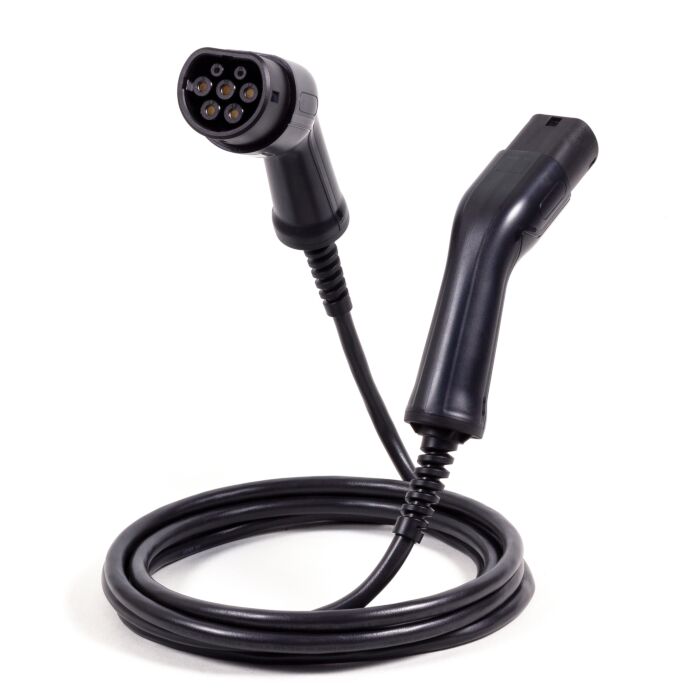

This cable has a Type 2 EV Plug (charge point), to a Type 2 EV Socket (vehicle). They are compatible with all modern domestic charging points and allow for the maximum possible charging rate, which is 7.4kw (32amp). They are also compatible with the lower output, 3.6kw (16amp) units.

Features

• Made in Nottingham UK
• Choose from 25cm to 100m cable length
• Compatible with integrated car & ChargePoint locking mechanisms
• Single Phase up to 32amps (7.4kW) @ 230v/240v
• Flexible and UV stable cable
• Integral cable strain relief for maximum durability
• Resin filled connectors eliminate water ingress and offer unrivalled cable retention
• Cable and connector can withstand being run over
• Complimentary canvas carry bag included

Standards

• Type 2 connectors. According to IEC 62196-2
• H07BZ5-F Cable. 3core 6mm² (L,N,E) + 0.5 mm² (CP). According to IEC 62893
• Assembly and Testing. According to IEC 62196-1
• IP Protection Class: IP55 when connected
• IMDS registered
• UKCA & CE Certified
