N.B. Please note that all cables over 45m will need to be confirmed and are made to order, we do not keep these on the shelf. As max charging amperage will be dropped to 16Amps, to allow for voltage drop over the length of the cable. Please email [email protected] before placing your order.

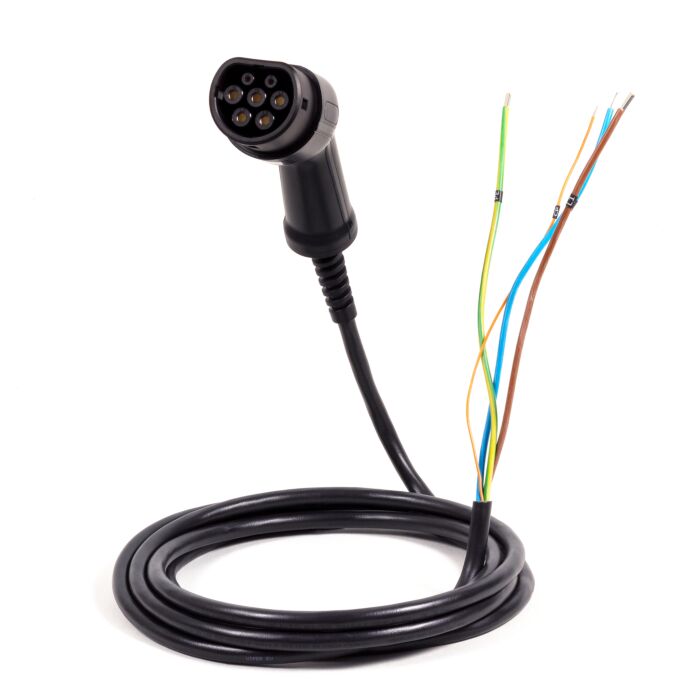

This Type2 EV charging cable is assembled in Nottingham UK and meets all international standards. This cable has a Type 2 EV connector at one side only (vehicle connector). They should only be used as direct replacements for 'Tethered' EV wall chargers. Reasons for replacing could be either a damaged cable, or to increase the length of the supplied cable, extending the reach of your wall charging point.
Features
Made in Nottingham UK
Choose from 25cm to 100m cable length
Compatible with integrated car & ChargePoint locking mechanisms
Single Phase up to 32amps (7.4kW) @ 230v/240v
Flexible and UV stable cable
Integral cable strain relief for maximum durability
Resin filled connectors eliminate water ingress and offer unrivalled cable retention
Cable and connector can withstand being run over
Complimentary canvas carry bag included
Standards
Type 2 connectors. According to IEC 62196-2
H07BZ5-F Cable. 3core 6mm² (L,N,E) + 0.5 mm² (CP). According to IEC 62893
