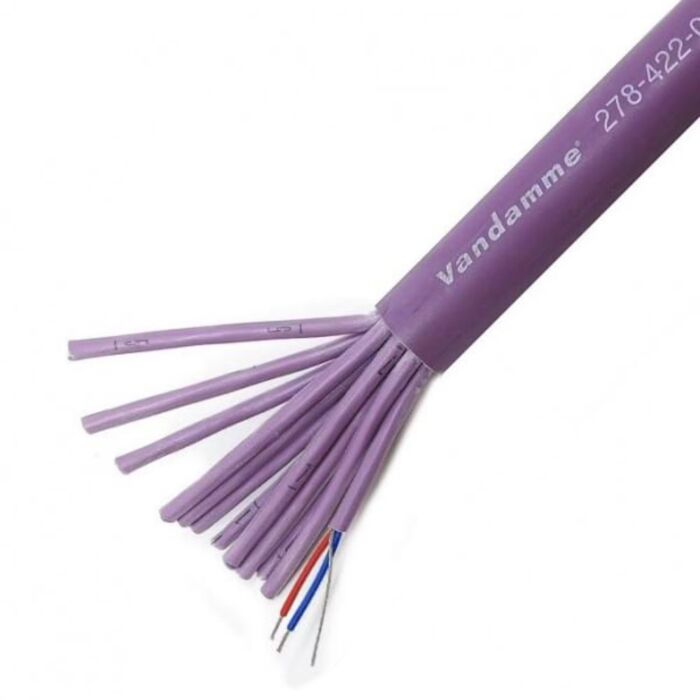

Van Damme Purple series Digilog LSZH Ecoflex

The use of LSZH cables is becoming a specified essential in public buildings and new build construction projects. Based electrically and mechanically on the Van Damme Green Series range this cable will carry AES/EBU and/or analogue balanced audio as well as paired data signals such as RS485, RS422 and DMX512.

Applications

• Installed AES/EBU digital or analogue audio cable infrastructure requiring LSZH construction
• Any 100 to 110 Ohm balanced data application such as RS422, RS485, DMX512 and timecode
• Installation in marine vessels, schools and colleges, government premises and public buildings
• Equipment rack wiring where LSZH materials have been specified

Application Notes

• For the transmission of analogue and digital audio, paired data and midi signals in an installation
• environment from 1 - 24 pairs
• Multicore types have 26AWG conductors for a reduced overall diameter
• Jacket material specified as the thermoplastic polymer SHF-1; compliant with IEC 60092-360:2014
• Electrical Installations in ships - Sheathing materials for shipboard power and communication cables
• Fully tested and compliant with the following IEC standards: IEC 60332.1 Fire retardancy of a single
• cable; IEC 60754.1 Amount of Halogen Gas Emissions; IEC 60754.2 Degree of acidity of released gases;
• IEC 61034.2 Measurement of smoke density
• Ultra-pure oxygen free copper for outstanding sonic integrity
