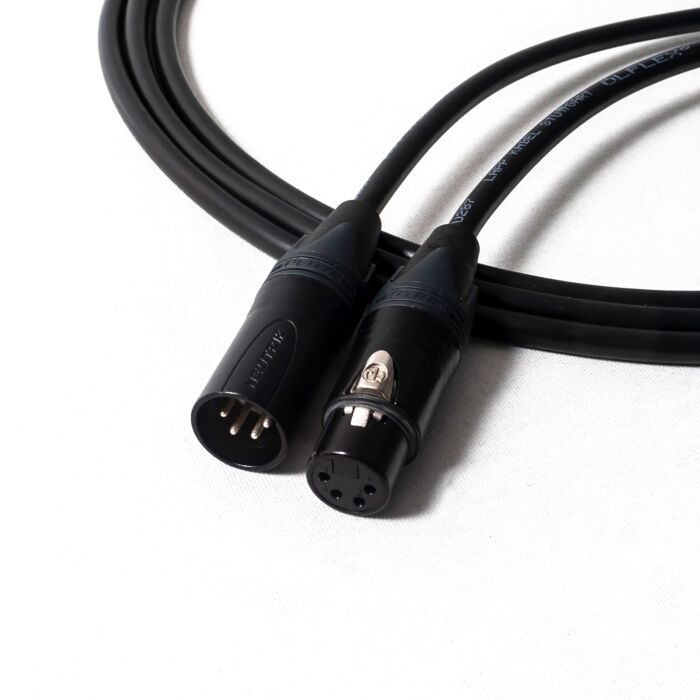

4 Pin XLR DC Power Lead. Flexible & UV Stable TPU Cable. Female to Male
As low as
£23.54
In stock
SKU
NC4F-BAG-FoxDC.TPU.PRNT-NC4M-BAG
Multibuy discounts calculated at checkout
A professional Female to Male 4-pin XLR DC power lead built for demanding broadcast, audio and field-production environments. This cable uses high-quality components throughout, combining rugged Neutrik connectors with a durable TPU-jacketed 4-core power cable for excellent flexibility, long service life and reliable power delivery.
A professional Female to Male 4-pin XLR DC power lead built for demanding broadcast, audio and field-production environments. This cable uses high-quality components throughout, combining rugged Neutrik connectors with a durable TPU-jacketed 4-core power cable for excellent flexibility, long service life and reliable power delivery.
Designed for reliability in studios, racks and outdoor production setups, this cable offers the durability expected from professional-grade components.
Wiring Notes
This cable follows the standard 4-pin XLR DC power wiring convention commonly used in broadcast and professional video equipment. All 4 pins are wired, and are 'pin to pin'.
Why Fox 4 core cable?
The lead is constructed using FOX 4cDC 4-core 0.75 mm² cable, featuring stranded copper conductors and a tough matte-black TPU outer jacket designed for flexibility and resistance to abrasion, oils, salt water and environmental exposure. With its UV-stable polyurethane jacket, the cable remains flexible while offering strong resistance to ageing, weathering and mechanical wear.
Why Neutrik Connectors?
At each end are genuine Neutrik NC4FXX-BAG (female) and NC4MXX-BAG (male) connectors. These professional XX-series XLR connectors feature robust die-cast housings, silver-plated contacts and Neutrik’s reliable latch-locking mechanism for secure connections in demanding applications. Each contact is rated up to 7.5 A with <50 V operation, making them ideal for low-voltage DC power distribution commonly used in broadcast, camera and professional AV systems.
Key Features
- 4-Pin XLR DC power cable (Female → Male)
- FOX 4cDC 4 × 0.75 mm² stranded copper conductors
- Flexible TPU jacket – highly durable and abrasion resistant
- UV-stable outer sheath suitable for outdoor use
- Neutrik NC4FXX-BAG & NC4MXX-BAG connectors
- Silver-plated contacts for low contact resistance
- Latch-locking XLR connection for secure power distribution
- Matte black cable jacket, approx. 5.5 mm outer diameter
- Max Current rating is 7.5amps
Typical Applications
- Broadcast and camera power systems
- 12 V / 24 V DC distribution
- Lighting and video equipment
- Professional AV and rack power connections
Standards & Compliance
- RoHS compliant materials
- REACH standards
- Professional audio wiring conventions
Part Numbers
- Neutrik NC4FXX-BAG connector
- Neutrik NC4MXX-BAG connector
- FOX.4core.TPU.0.75mm Cable
| Delivery Speed | Made to Order - Next Day Delivery Available |
|---|---|
| Cable Conductor | 4 x 0.75mm |
| Cable Screening | None |
| Cable Jacket | Thermoplastic Polyurethane (TPU) |
| Overall Diameter | 5.5mm |
| Cable Brand | Fox Cables |
| Application | Tour Grade |
| Contact Material | Silver Plated |
| Number of Contacts | 4 Pole |
