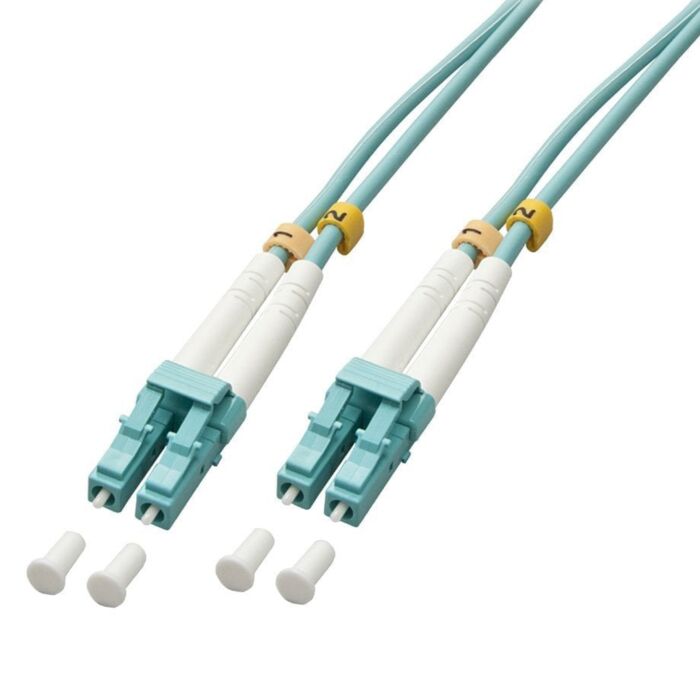

Lindy LC-LC OM3 50-125 Multimode Fibre Optic Duplex Patch Cable
As low as
£0.00
In stock
SKU
OM3-LC-LC
Multibuy discounts calculated at checkout
Lindy LC-LC OM3 50-125 Multimode Fibre Optic Patch Cable with duplex construction and LSZH jacket, designed for reliable high-speed network connectivity.
Lindy LC-LC OM3 50-125 Multimode Fibre Optic Patch Cable with duplex construction and LSZH jacket, designed for reliable high-speed network connectivity.
This LC-LC OM3 fibre optic patch cable is designed for consistent high-speed data transmission in data centre, telecom and enterprise network environments. The duplex construction supports simultaneous sending and receiving of signals, while the LSZH jacket makes it suitable for use in enclosed or public environments where safety is a priority.
Wiring Notes
This fibre optic cable transmits data as pulses of light through two internal glass fibres rather than electrical signals. A device at one end converts data into light, which travels along the fibre core and is then converted back into data at the other end. The duplex design allows simultaneous sending and receiving of signals, while the OM3 multimode fibre supports high-speed data transmission over short to medium distances. The LC to LC connectors provide a compact, high-density connection suitable for modern fibre network equipment.
Why Lindy Cables?
Lindy fibre optic cables are trusted worldwide for delivering reliable, high-performance connectivity in professional network, data centre and telecom installations.
- Proven brand – Over 90 years of experience in connectivity and AV technology
- High-quality construction – Ceramic connectors ensure low signal loss and high reliability
- Duplex design – Supports simultaneous data transmission and reception for efficient networking
- OM3 multimode fibre – Designed for high-bandwidth short-range network connections
- LC to LC connectivity – Compact, high-density connectors compatible with standard fibre equipment
Technical Specifications
- Connector A: 2 x LC Male
- Connector B: 2 x LC Male
- Fibre Type: OM3 Multimode
- Core Size: 50-125µm
- Fibre Count: Duplex (2 fibres, twin zip)
- Jacket Material: LSZH / LS0H
- Cable Diameter: 3mm OD
- Connector Material: Ceramic ferrule
- EMI Immunity: Total immunity to electromagnetic interference
Standards & Compliance
This product uses LSZH (Low Smoke Zero Halogen) materials. For full regulatory compliance information including CE, UKCA, RoHS and REACH status, please refer to the manufacturer or request documentation.
Part Numbers
- 46370 - Lindy LC-LC OM3 50-125 Multimode Fibre Optic Duplex Patch Cable - 1m
- 46371 - Lindy LC-LC OM3 50-125 Multimode Fibre Optic Duplex Patch Cable - 2m
- 46372 - Lindy LC-LC OM3 50-125 Multimode Fibre Optic Duplex Patch Cable - 3m
- 46373 - Lindy LC-LC OM3 50-125 Multimode Fibre Optic Duplex Patch Cable - 5m
- 46374 - Lindy LC-LC OM3 50-125 Multimode Fibre Optic Duplex Patch Cable - 10m
- 46375 - Lindy LC-LC OM3 50-125 Multimode Fibre Optic Duplex Patch Cable - 15m
- 46376 - Lindy LC-LC OM3 50-125 Multimode Fibre Optic Duplex Patch Cable - 20m
- 46400 - Lindy LC-LC OM3 50-125 Multimode Fibre Optic Duplex Patch Cable - 30m
- 46401 - Lindy LC-LC OM3 50-125 Multimode Fibre Optic Duplex Patch Cable - 40m
- 46402 - Lindy LC-LC OM3 50-125 Multimode Fibre Optic Duplex Patch Cable - 50m
- 46403 - Lindy LC-LC OM3 50-125 Multimode Fibre Optic Duplex Patch Cable - 75m
- 46404 - Lindy LC-LC OM3 50-125 Multimode Fibre Optic Duplex Patch Cable - 100m
- 46405 - Lindy LC-LC OM3 50-125 Multimode Fibre Optic Duplex Patch Cable - 150m
- 46406 - Lindy LC-LC OM3 50-125 Multimode Fibre Optic Duplex Patch Cable - 200m
Fibre Optic Cable Comparison
| Fibre Type | Core Size | Max Speed | Typical Distance | Best For |
|---|---|---|---|---|
| OM2 | 50/125µm | 1Gb - 10Gb | 1Gb: up to 550m 10Gb: up to 82m |
Legacy systems, short LAN runs |
| OM3 | 50/125µm | Up to 10Gb (40/100Gb short range) | 10Gb: up to 300m 40/100Gb: up to 100m |
Data centres, server rooms |
| OM4 | 50/125µm | Up to 100Gb | 10Gb: up to 550m 40/100Gb: up to 150m |
High-speed data centres |
| OM5 | 50/125µm | 100Gb+ (SWDM) | Up to 150m | Future-ready, high-bandwidth networks |
| OS2 | 9/125µm | 10Gb - 400Gb+ | 10Gb: 10km+ 100Gb: 10-40km+ |
Long-distance, WAN, telecoms |
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Capacitance | - |
| Cable Resistance | - |
| Cable Conductor | 50-125µm Duplex Twin Zip |
| Cable Screening | - |
| Cable Jacket | LSZH / LS0H (Low Smoke Zero Halogen) |
| Overall Diameter | 3mm |
| Cable Brand | Lindy |
| Application | Tour & Studio Grade |
