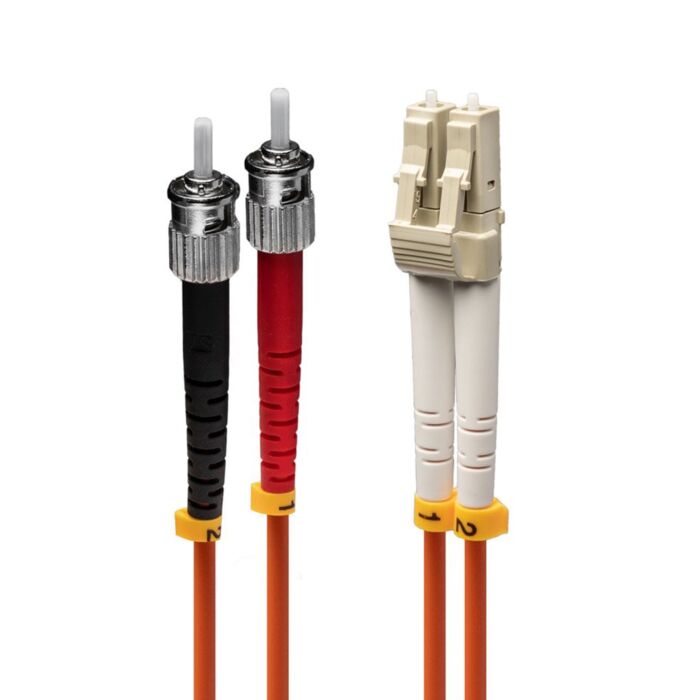

Lindy LC-ST OM2 50-125 Multimode Fibre Optic Duplex Patch Cable
As low as
£0.00
In stock
SKU
OM2-LC-ST
Multibuy discounts calculated at checkout
Lindy LC-ST OM2 50-125 multimode fibre optic patch cable with duplex construction and LSZH jacket, designed for reliable high-speed network connectivity.
Lindy LC-ST OM2 50-125 multimode fibre optic patch cable with duplex construction and LSZH jacket, designed for reliable high-speed network connectivity.
This LC-ST OM2 fibre optic patch cable is designed for consistent short to medium distance data transmission. The duplex construction supports simultaneous sending and receiving of signals, while the LSZH jacket makes it suitable for use in enclosed or public environments where safety is a priority.
Wiring Notes
This fibre optic cable transmits data as pulses of light through two internal glass fibres, rather than electrical signals. A device at one end converts data into light, which travels along the fibre core and is then converted back into data at the other end. The duplex design allows simultaneous sending and receiving of signals, while the OM2 multimode fibre supports reliable short to medium distance connections. The LC to ST connectors enable compatibility between modern high-density equipment and older fibre network interfaces.
Why Lindy Cables?
Lindy fibre optic cables are trusted worldwide for delivering reliable, high-performance connectivity in professional network, data centre and telecom installations.
- Proven brand – Over 90 years of experience in connectivity and AV technology
- High-quality construction – Precision fibre and ceramic ferrules ensure consistent signal performance
- Duplex design – Supports simultaneous data transmission and reception for efficient networking
- OM2 multimode fibre – Suitable for short to medium distance network connections
- LC to ST connectivity – Ideal for linking modern and legacy fibre network equipment
Technical Specifications
- Connector A: 2 x LC Male
- Connector B: 2 x ST Male
- Fibre Type: OM2 Multimode
- Core Size: 50-125µm
- Fibre Count: Duplex (2 fibres, twin zip)
- Cable Construction: Twin zip
- Jacket Material: LSZH / LS0H (Low Smoke Zero Halogen)
- Cable Diameter: 3mm OD
- Connector Material: Ceramic ferrule
- Insertion Loss: Approx. 0.3 dB
- EMI Immunity: Total immunity to electromagnetic interference
Standards & Compliance
This product uses LSZH (Low Smoke Zero Halogen) materials. For full regulatory compliance information including CE, UKCA, RoHS and REACH status, please refer to the manufacturer or request documentation.
Part Numbers
- 46490 - Lindy LC-ST OM2 50-125 Multimode Fibre Optic Duplex Patch Cable - 1m
- 46491 - Lindy LC-ST OM2 50-125 Multimode Fibre Optic Duplex Patch Cable - 2m
- 46492 - Lindy LC-ST OM2 50-125 Multimode Fibre Optic Duplex Patch Cable - 3m
- 46493 - Lindy LC-ST OM2 50-125 Multimode Fibre Optic Duplex Patch Cable - 5m
- 46494 - Lindy LC-ST OM2 50-125 Multimode Fibre Optic Duplex Patch Cable - 10m
- 46496 - Lindy LC-ST OM2 50-125 Multimode Fibre Optic Duplex Patch Cable - 20m
Fibre Optic Cable Comparison
| Fibre Type | Core Size | Max Speed | Typical Distance | Best For |
|---|---|---|---|---|
| OM2 | 50/125µm | 1Gb - 10Gb | 1Gb: up to 550m 10Gb: up to 82m |
Legacy systems, short LAN runs |
| OM3 | 50/125µm | Up to 10Gb (40/100Gb short range) | 10Gb: up to 300m 40/100Gb: up to 100m |
Data centres, server rooms |
| OM4 | 50/125µm | Up to 100Gb | 10Gb: up to 550m 40/100Gb: up to 150m |
High-speed data centres |
| OM5 | 50/125µm | 100Gb+ (SWDM) | Up to 150m | Future-ready, high-bandwidth networks |
| OS2 | 9/125µm | 10Gb - 400Gb+ | 10Gb: 10km+ 100Gb: 10-40km+ |
Long-distance, WAN, telecoms |
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Capacitance | - |
| Cable Resistance | - |
| Cable Conductor | 50-125µm Duplex Twin Zip |
| Cable Screening | - |
| Cable Jacket | LSZH / LS0H (Low Smoke Zero Halogen) |
| Overall Diameter | 3mm |
| Cable Brand | Lindy |
| Application | Tour & Studio Grade |
