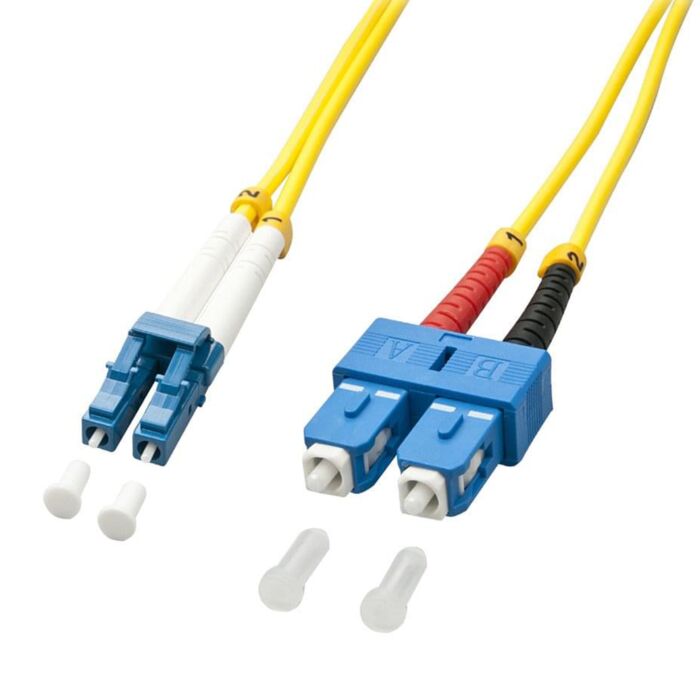

Lindy LC-SC OS2 9-125 Singlemode Fibre Optic Duplex Patch Cable

This LC-SC OS2 fibre optic patch cable is designed for consistent long-distance data transmission in telecom, data centre and enterprise network environments. The duplex construction supports simultaneous sending and receiving of signals, while the LSZH jacket makes it suitable for use in enclosed or public environments where safety is a priority.

Wiring Notes

This fibre optic cable transmits data as pulses of light through two internal glass fibres rather than electrical signals. A device at one end converts data into light, which travels along the fibre core and is then converted back into data at the other end. The duplex design allows simultaneous sending and receiving of signals, while the OS2 singlemode fibre supports high-speed data transmission over longer distances with minimal signal loss. The LC to SC connectors enable compatibility between modern and legacy fibre network equipment.

Why Lindy Cables?

Lindy fibre optic cables are trusted worldwide for delivering reliable, high-performance connectivity in professional network, data centre and telecom installations.

• Proven brand – Over 90 years of experience in connectivity and AV technology
• High-quality construction – Precision fibre and ceramic ferrules ensure low signal loss and high reliability
• Duplex design – Supports simultaneous data transmission and reception for efficient networking
• OS2 singlemode fibre – Designed for long-distance, high-bandwidth network connections
• LC to SC connectivity – Ideal for linking modern and legacy fibre network equipment

Technical Specifications

• Connector A: 2 x LC Male
• Connector B: 2 x SC Male
• Fibre Type: OS2 Singlemode
• Core Size: 9-125µm
• Fibre Count: Duplex (2 fibres, twin zip)
• Cable Construction: Twin zip
• Jacket Material: LSZH / LS0H (Low Smoke Zero Halogen)
• Cable Diameter: 3mm OD
• Connector Material: Ceramic ferrule
• Insertion Loss: Approx. 0.3 dB
• EMI Immunity: Total immunity to electrical and electromagnetic interference



Standards & Compliance

This product uses LSZH (Low Smoke Zero Halogen) materials. For full regulatory compliance information including CE, UKCA, RoHS and REACH status, please refer to the manufacturer or request documentation.

Part Numbers

• 47470 - Lindy LC-SC OS2 9-125 Singlemode Fibre Optic Duplex Patch Cable - 1m
• 47471 - Lindy LC-SC OS2 9-125 Singlemode Fibre Optic Duplex Patch Cable - 2m
• 47472 - Lindy LC-SC OS2 9-125 Singlemode Fibre Optic Duplex Patch Cable - 3m
• 47473 - Lindy LC-SC OS2 9-125 Singlemode Fibre Optic Duplex Patch Cable - 5m
• 47474 - Lindy LC-SC OS2 9-125 Singlemode Fibre Optic Duplex Patch Cable - 10m
• 47475 - Lindy LC-SC OS2 9-125 Singlemode Fibre Optic Duplex Patch Cable - 15m
• 47476 - Lindy LC-SC OS2 9-125 Singlemode Fibre Optic Duplex Patch Cable - 20m
