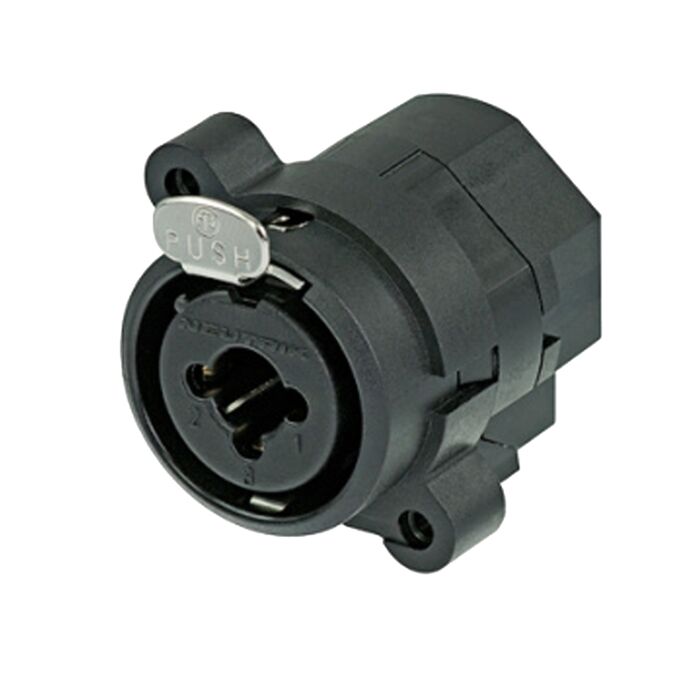

Neutrik NCJ6FI-S Combo XLR Female with Quarter TRS Jack Receptacle. Chassis Panel
Neutrik NCJ6FI-S Combo XLR Female with Quarter TRS Jack Receptacle. Chassis Panel
£3.73
In stock
We have 321 items in stock!
Multibuy discounts calculated at checkout
-
Buy 5 for
£3.54
each and save 5%
-
Buy 10 for
£3.36
each and save 10%
-
Buy 15 for
£3.17
each and save 15%
-
Buy 20 for
£2.98
each and save 20%
XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4" jack.
NCJ6FI-S
3 pole XLR female receptacle with combo 1/4" TRS jack without switching contact, solder cups for wire termination
- Title - NCJ6FI-S
- Connection Type - Combo
- Gender - female
Technical Spec
Electrical
- Contact resistance - < 10 mΩ (XLR)
- Contact resistance - < 20 mΩ (jack & switching contacts)
- Dielectric strength - 1,5 kVdc
- Insulation resistance - > 2 GΩ (initial)
- Rated current per contact - 7,5 A (XLR)
- Rated current per contact - 7,5 A (Jack)
- Rated voltage - < 50 V
Mechanical
- Insertion force - ≤ 25 N
- Withdrawal force - ≤ 25 N
- Lifetime - > 1000 mating cycles
- Panel thickness - max. 7 mm 0.27"
- Mounting direction - Rear mounting
Material
- Contact plating - 0.2 µm Au hard alloy over 2 µm Ni
- Contacts - Bronze (CuSn6)
- Insert - Polyamide (PA 6.6 30 % GR)
- Locking element - Steel Ck67
Environmental
- Temperature range - -30 °C to +80 °C
More Information
Delivery Speed |
Next Day delivery available if 'In Stock' |
Mounting Method |
Panel Mount - Solder |
Series Range Name |
Neutrik Combo Series |
Contact Material |
Gold Plated |
Number of Contacts |
3 Pole |
Pack Quantity |
Pack of 1 |
Manufacturer URL |
Download Data Sheet
|
Data Sheet URL |
Download Data Sheet
|
