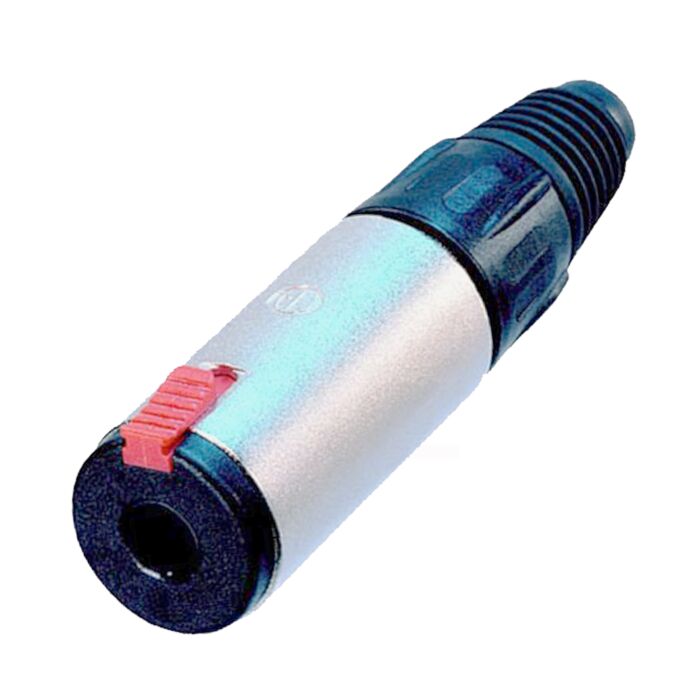

Neutrik NJ3FC6 TRS Socket. Silver 1/4" female Jack connector

£6.48
  • Buy 10 for £5.89 each and save 10%
  • Buy 20 for £5.63 each and save 14%
  • Buy 50 for £5.40 each and save 17%
  • Buy 100 for £5.18 each and save 21%

Quick Overview

Balanced/Stereo ¼” Jack Socket, 3 Pole, Female, Silver Contacts, Silver Housing

Availability: In stock

Check Prime Stock
OR
Ship to: Worldwide

Details

Neutrik Socket NJ3FC-6C


Balanced/Stereo ¼” Jack Socket, 3 Pole, Female, Silver Contacts, Silver Housing

A quality ¼ inch stereo Jack socket from Neutrik. For use as an extension cable or in fixed/static applications. Comprising of a solid die cast metal body, chuck type strain relief and silver contacts. This handy socket is a solid connector that will deliver a bright and lively sound. This socket can also be used as mono/unbalanced

The Silver Contacts offer sound conductivity and durability

3 Pole relates to the amount of carrier signals inside the cable/connector assembly, in this case three. Two signal carriers and a ground. This can be used in a balanced or stereo assembly making it Ideal for balanced audio applications. Mono or unbalanced cables can used although the benefits of the balanced connector will not be used

Electrical
Contact resistance - < 6 mΩ (initial)
Dielectric strength - 1 kVdc
Insulation resistance - ≥ 1 GΩ @ 500 V dc
Rated current per contact - 10 A

Material
Boot - Polyuretan
Bushing - Polyamide (PA 6 15% GR)
Contact plating - 2 µm Ag
Contacts - Bronze (CuBe2)
Contacts - Brass (CuZn37) (Ground)
Insert - Polyamide (PA 6.6 30 % GR)
Shell - Zinc diecast (ZnAl4Cu1)
Shell plating - Nickel
Strain relief - Polyacetal (POM)

Additional Information

Connector Type TRS Stereo Jack
Mains Connector Type No
Manufacturer Neutrik
Works with.... No
Poles 3 Pole
Metal Type.... Silver Plated
