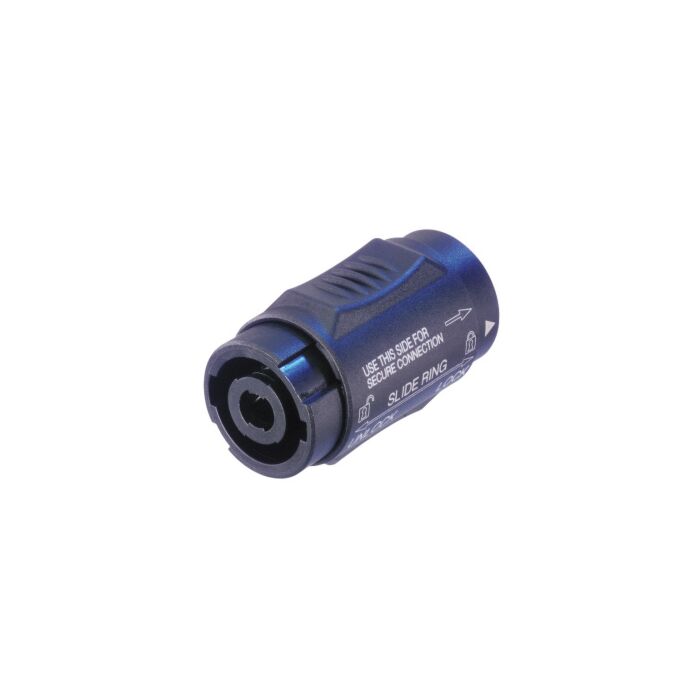

Neutrik NL4MMX Speakon Coupler, Adapter, Gender Changer, Joiner

NL4MMX

Lockable 4 pole speakON adapter
Links two NL2/4F*s together for cable extension. Changes gender to male when permanently locked on the cable.
Features permanent secure connection on a speakON cable connector using 2nd lock. Can be permanently attached to NL2/4F*.

Technical Information

Electrical
Contact resistance - ≤ 3 mΩ (after lifetime)
Dielectric strength - 4 kVdc (peak)
Insulation resistance - > 1 GΩ (after dampheat)
Rated current per contact - 15 A rms continuous
Rated current per contact - 30 A audiosignal, duty cycle 50 %
Rated voltage - 250 V (Insulation)

Attention
speakON is NOT to be used as an AC mains or power supply connector!

Mechanical
Lifetime - > 5000 mating cycles
Locking device - Quick Lock

Material
Contact plating - 4 µm Ag
Contacts - Bronze (CuSn6)
Insert - Polyamide (PA 6 30 % GR)
Shell - Polyamide (PA 6 30 % GR)

Environmental
Flammability - UL 94 HB
Solderability - Complies with IEC 68-2-20
Temperature range - -30 °C to +80 °C
