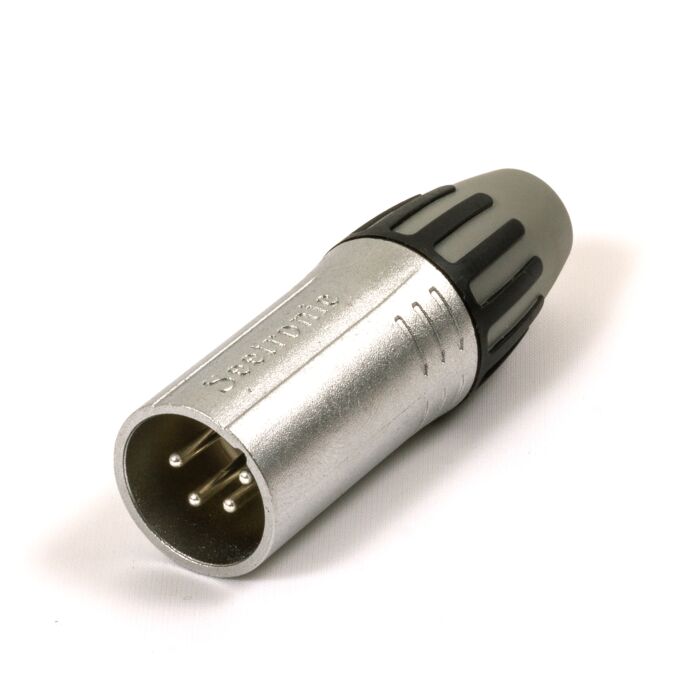

SEETRONIC 4 Pin Male XLR Connector. SCMM4. Microphone. DC Power. Headphone Amp

This classic looking XLR connector uses Seetronics rugged chuck type cable strain relief along with a tough polyurethane boot and die cast metal casing. Simplicity is key when it comes to connector assembly, these have 4 integral parts that lock together when assembled and squeeze down on to the cable to ensure a rock-solid termination that will not come un-stuck without disassembly. Seetronic represent excellent value for money

Commonly used for connecting; DC power lines in professional camera rigs and Balanced Headphones connecting to Headphone amplifiers

• Dielectric strength: 1.5kVdc
• Insulation resistance: >10GΩ (initial)
• Rated current per contact: 16A
• Rated voltage: <50V
• Insertion force: ≤ 20N
• Withdrawal force: ≤ 20N
• Service life: 1000 mating cycles
• Wire size: Max. 2.5 mm²/14 AWG
• Locking device: Latch lock
• Boot: Polyurethane
• Contacts: Cu alloy
• Contact plating: Sn
• Insert: Polyamide (PA 66 +30 % GF)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Cr
• Strain relief: Polyacetal (POM)
• Flame-retardant grade: UL 94 HB
• Protection class: IP40
• Temperature range: -30℃to +80℃
