Sommer SC-Quantum QMC Multicore. AES. Super-Flexible PVC

A true allrounder...

because it could not be any longer, faster or more flexible. SC-Quantum QMC HIGHFLEX is just the cable that all “bending radius fetishists“ like event technicians, musicians and ambitious live sound people have always been dreaming of!

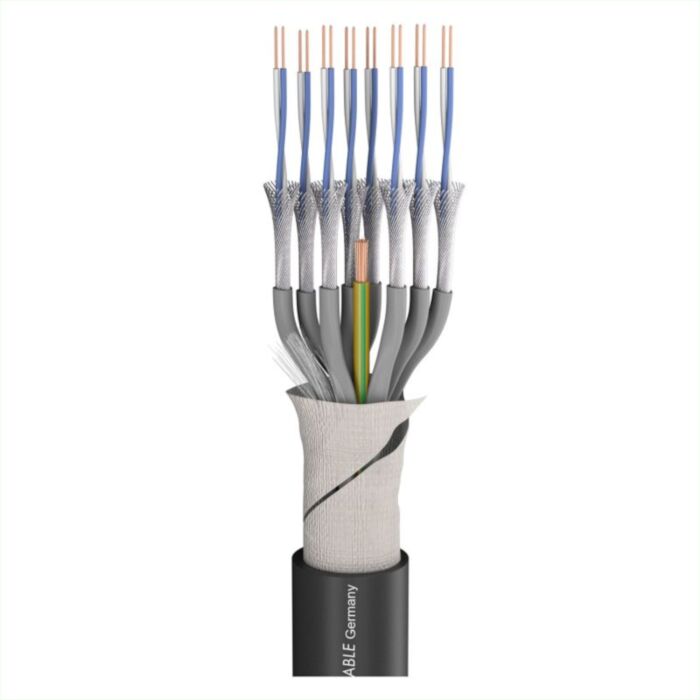

The SC-Quantum QMC HIGHFLEX is absolutely torsionfree, i.e. it can be wound in a figure of “8“ easily and will not twist when winding or unwinding it. Not only the S-PVC-jacket, which is cold-resistant down to –30 °C and notch-resistant, feels soft – due to the superfine 0.07 mm (!) individual copper litz and the PEinsulated wire insulation, even the interior is wonderfully supple and unbreakable. From the 8-pair version upward we have included an extra yellow/green protective earth wire to provide for added stability and safety (PE = protective earth).

The electrical and mechanical data are likewise remarkable: each wire pair is additionally tube-insulated, numbered and shielded by a helical Cu mesh screen with
a 99 % coverage.

Go figure this: the SC-Quantum QMC HIGHFLEX stands out with its low 45 pF wire/wire capacitance and will remain 110 Ω (AES/EBU) conform for several hundred metres!

The wire pair diameter is perfectly suitable for direct mounting (e.g. of an XLR connector). The interior is protected against adverse influences by a highly flexible PVC jacket with a wall thickness of almost 2 mm.

There has never been a cable with such electrical and mechanical values for such a low price!

Advantages:

- Each wire pair is individually insulated and shielded by a helical Cu mesh ( coverage)

- Very low wire/wire capacitance

- Highly flexible and reelable without twisting

- In compliance with AES/EBU ()

- Affordable price

Application:

- Professional stage and live multicore for separate or central earthing

- Creation of highly flexible studio looms, analogue and digital

- Permanent Installation

Technical Data:

- Article number: 100-0451-04

- Article number: 100-0451

- Name: SC-Quantum QMC

- Name: SC-Quantum QMC04

- EAN: 4049371000987

- Properties: Torsion-free

- Properties: Strong PVC-jacket

- Properties: Analog

- Properties: OFC oxygen free copper

- Properties: Digital 110 Ω AES / EBU

- Application area: Stage / live

- Application area: Mobile outdoor / indoor

- Application area: Studio / Broadcast

- Application area: Installation

- Application: Multipair

- Colour: black

- Signal transmission: symmetrical

- Construction: [04(2LI2Y0,14mm²)DY+(0,5mm²)Y]Y

- Jacket material: S-PVC

- Jacket Ø: 10,20 mm

- Jacket Ø: 0.4016 "

- Number of Channels (audio): 24

- Number of Channels (audio): 48

- Number of Channels (audio): 32

- Number of Channels (audio): 12

- Number of Channels (audio): 16

- Number of Channels (audio): 20

- Number of Channels (audio): 8

- Number of Channels (audio): 4

- Number of Channels (audio): 2

- Number of Channels (audio): 4

- Inner conductor (audio): 2

- Inner conductor (audio): 0,14 mm²

- Inner conductor (audio): 0.0002 sqin

- Inner conductor Ø (audio): 0,42 mm

- Inner conductor Ø (audio): 0.0165 "

- AWG (audio): 26

- Shielding: Copper spiral in pairs, tin-plated

- Shielding factor: 99 %

- Copper strands (audio): 36

- Copper strand Ø (audio): 0,07 mm

- Copper strand Ø (audio): 0.0028 "

- Weight per 1 m: 108 g

- Weight at 1000 ft.: 72.6749 lbs

- UV-resistant: yes

- Fire load per m: 0,41 kWh

- Fire load per m: 0,26 kWh

- Style variant: round

- Packing: bulk stock

- Temperature min.: -25 °C

- Temperature max.: 80 °C

- Capac. cond./cond. per 1 m (audio): 45 pF

- Capacity wire/wire at 1 ft. (audio): 13.716 pF

- Capac. cond./shield. per 1 m (audio): 90 pF

- Capacity wire/electic screen at 1 ft. (audio): 27.432 pF

- Impedance: 110 Ω

- Insulation resist. per 1 km: 0,02 GΩ

- Insulation resist. per 1000 feet: 0.0061 GΩ

- Insulation resist. per 1 km (audio): 0,02 GΩ

- Insulation resist. per 1000 feet (audio): 0.0061 GΩ

- Conductor resistance per 1 km: 138 Ω

- Conductor resistance per 1000 ft.: 42.0624 Ω

- BPVo-Euroclass: Fca
