SPDIF Digital Audio Video Coaxial Cable. RCA to RCA. Van Damme 75ohm Coax Phono
High quality cable for the transmission of 75ohm digital signals, SPDIF digital audio, Word Clock etc. Excellent screening provides optimum protection form Electrical and magnetic interference.
We also sell these leads with various coloured marking boots.

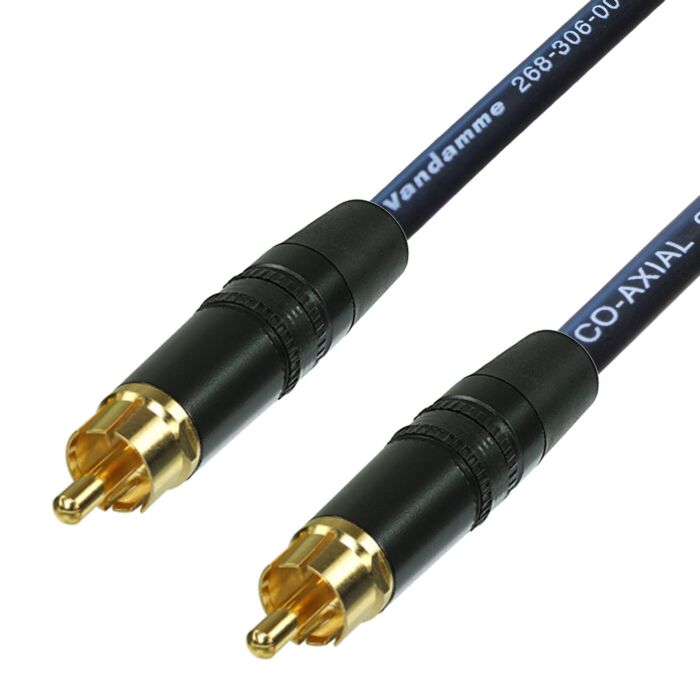

A digital signal lead made using Van Damme’s Plasma Grade 75 ohm Coaxial cable and Rean RCA’s with black marking rings. The cable is suitable for both Audio and Video applications. If you would prefer Red marking rings then please specify on checkout.
The jacket of the cable is made from a flexible and rugged PVC rubber and the screen is braided around the core to enhance the protection form unwanted Electro Magnetic Interferences.
This lead has a specific impedance of 75 ohms which is the industry standard resistance that SPDIF and Word Clock use in order to transmit there digital data. Without this devices would not ‘Sync’ correctly and information would be lost or misrepresented.
Van Damme 75ohm Coaxial Plasma Grade Cable
REAN NYS373 Phono RCAs
Manufactured using 4% silver solder
| Cable Capacitance | Capacitance - 67 pF/m |
|---|---|
| Cable Resistance | Shield - 13 Ohm/Km Insulation - > 5000 M Ohm/Km |
| Cable Conductor | Conductor - 85 Ohm/Km |
| Cable Screening | NA |
| Cable Jacket | Overall Jacket Material - Flexible PVC Average thickness - 0.95mm Overall diameter - 6.15mm |
| Overall Diameter | NA |
| Brand.... | Van Damme |
| Application.... | Tour & Studio Grade |
| Terminated with.... | Male XLR to Female XLR |
| Metal Type.... | Gold Plated |
