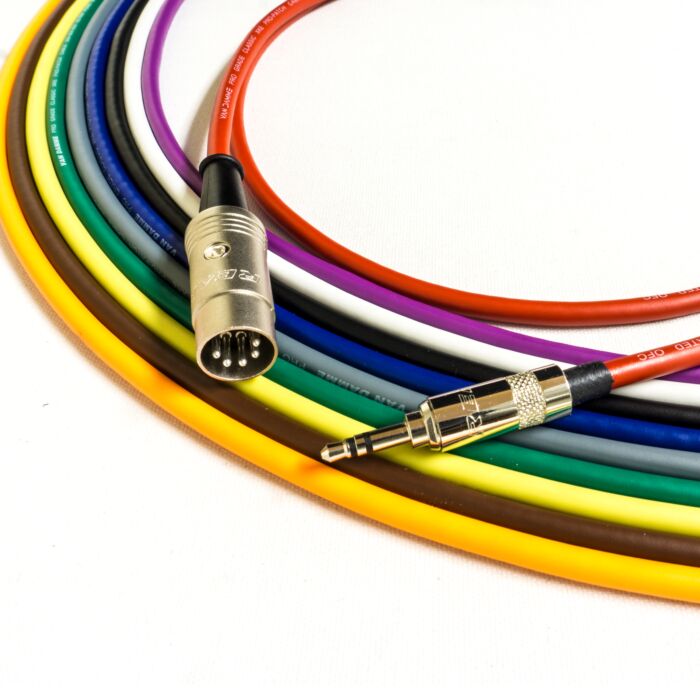

Straight MIDI over Mini Jack Cable. 3.5mm TRS to DIN Lead
As low as
£12.91
In stock
SKU
NYS-PP.PRNT-NYS322
Multibuy discounts calculated at checkout
MIDI over Mini Jack Cable for 1010 Music, Akai, Arturia, IK Multimedia, Korg, Line 6, Littlebits, Make Noise, Midiplus, Novation + many more
MIDI over Mini Jack Cable for 1010 Music, Akai, Arturia, IK Multimedia, Korg, Line 6, Littlebits, Make Noise, Midiplus, Novation + many more
As time has gone by Synths have become increasingly complex and more compact, yet the Midi protocol remains the same. To save space for more fun stuff modern devices are now using 3.5mm mini jack sockets to send Midi commands. This range of cables interfaces the modern 3.5mm socket with the old style 5 Pin Din allowing seamless integration with controllers, sound cards and other devices that you know and love
Take care to select the correct manufacturer and device from the above list as there are many ways to wire these cables. Standards have now been drawn up by the midi association, but devices made prior to this may be wired differently. If your device is not listed above, please message us so we can ensure you are getting the correct product
- All cables are labelled with the device name to avoid confusion
- 3.5mm Male Mini jack (straight or angled available)
- Van Damme Pro-Grade XKE patch cable, soft and flexible
- REAN 5 Pin DIN (straight)
- Manufactured with a 3.5% silver solder
| Delivery Speed | Made to Order - Next Day Delivery Available |
|---|---|
| Cable Capacitance | Core to screen pF/m 95 nominal |
| Cable Resistance | Conductor Ohm/Km <85 |
| Cable Conductor | (24awg) Bare silver plated UPOFC wire, Stranding 7 x 0.10mm. Bare UPOFC wire, Stranding 21 x 0.10mm |
| Cable Screening | 96 x 0.10mm braided tinned oxygen free copper wire. Coverage 95% |
| Cable Jacket | Flexible PVC/Neoprene composite |
| Overall Diameter | 4.85mm ±0.10 |
| Cable Brand | designacable |
| Application | Tour & Studio Grade |
| Number of Contacts | 3 Pole |
