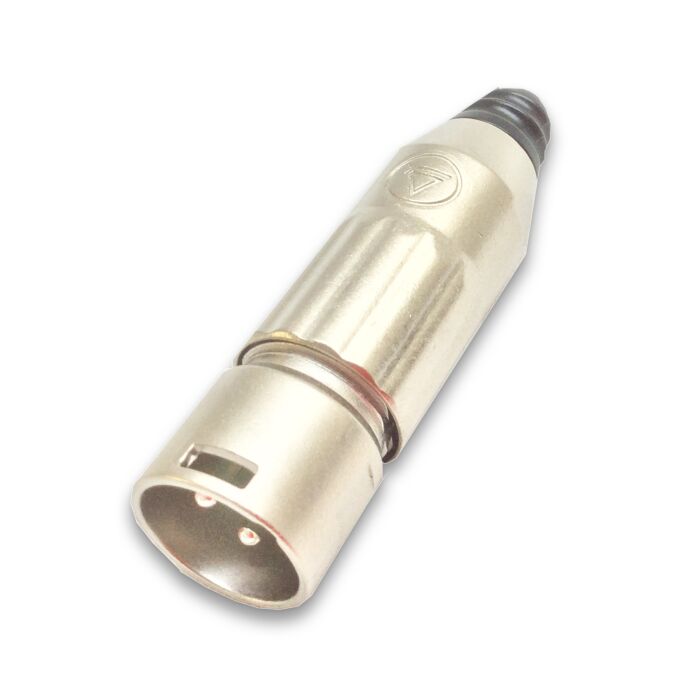

Switchcraft 3 Pole Male XLR. AAA3M

£4.26
In stock
We have 7 items in stock!
SKU
XLR_AAA3M
  • Buy 10 for £4.05 each and save 5%
  • Buy 20 for £3.83 each and save 10%
  • Buy 50 for £3.62 each and save 15%
  • Buy 100 for £3.41 each and save 20%

AAA Series Male

XLR connector with two piece assembly for quick termination and unmatched performance.

  • Contact Resistance: 50 milliohm maximum, per pole.
  • Dielectric Withstanding Voltage: 1,000 V (rms).
  • Capacitance: 2 pF between pins and 4 pF between pins and shell, maximum (AA3M and AA3F).
  • Current Rating: 3 pole – 15A, 4 pole - 10A, 5 and 6 pole – 7.5A, 7 pole – 5A @ 125VAC. Insulation Resistance: 1,000 MO, minimum.
  • Shell: Die-cast zinc. Satin nickel finish, black velvet.
  • Latch Release: Steel, nickel-plated.
  • Insert Screw: Stainless steel.
  • Flex Relief: TPR (thermoplastic rubber).
More Information
Connector Type XLR
Manufacturer Switchcraft
Metal Type.... Gold Plated
Poles 3 Pole
