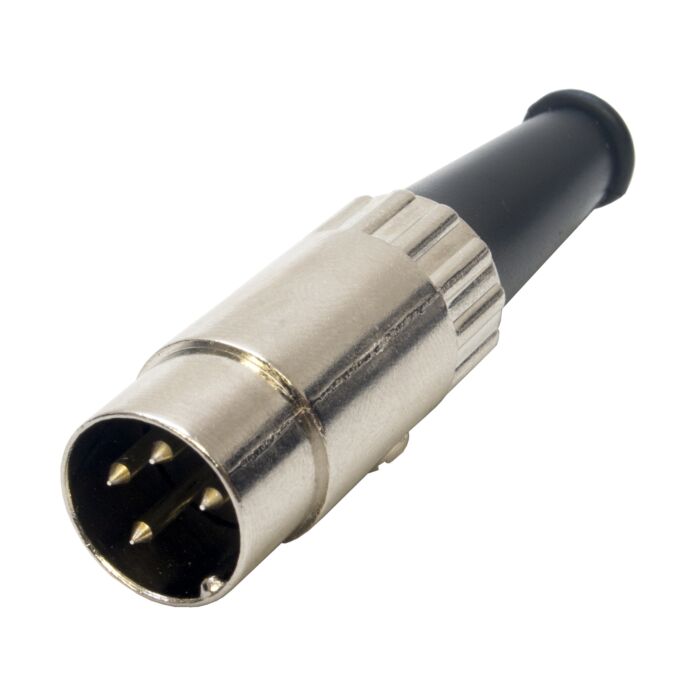

Switchcraft 4 Pin Din Straight Plug. 09BL4M. 210 Degree. Quad 33 44 303 405 405-2

£5.63
  • Buy 10 for £5.12 each and save 10%
  • Buy 20 for £4.89 each and save 14%
  • Buy 50 for £4.69 each and save 17%
  • Buy 100 for £4.50 each and save 21%

Quick Overview

4 pin male cord plug with shielded barrel and insulated snaplock plastic body.

Availability: In stock

Check Prime Stock
OR
Ship to: Worldwide

Details

Male cord plug with shielded barrel and insulated snaplock plastic body. Two piece metal barrel surrounds pin insert to form an electrical shield. The entire insert assembly is held together by snapping the insulated plastic shell over the assembly. The barrel's special metal tab locks the shell in place. Standard colour of plastic shell is gray. All-purpose cable clamp.



ELECTRICAL



  • Contact Resistance: Cord Plugs and Receptacles; .010 ohms, contact spring/pin  .030 ohms, ground clip/shell. Control and Switching Receptacles; .015 ohms, contact spring/pin; .020 ohms, switch contacts.
  • Dielectric Withstanding Voltage:  500 V (rms)
  • Contact Rating:  5-pin; 3A, 34 V DC
  • Leakage Resistance:  105M (ohm)
  • Recommended Wire Size:  22 wire gauge maximum

Additional Information

Connector Type Midi & DIN
Mains Connector Type No
Manufacturer Switchcraft
Works with.... Midi / DIN
Poles 4 Pole
Metal Type.... Silver Plated
