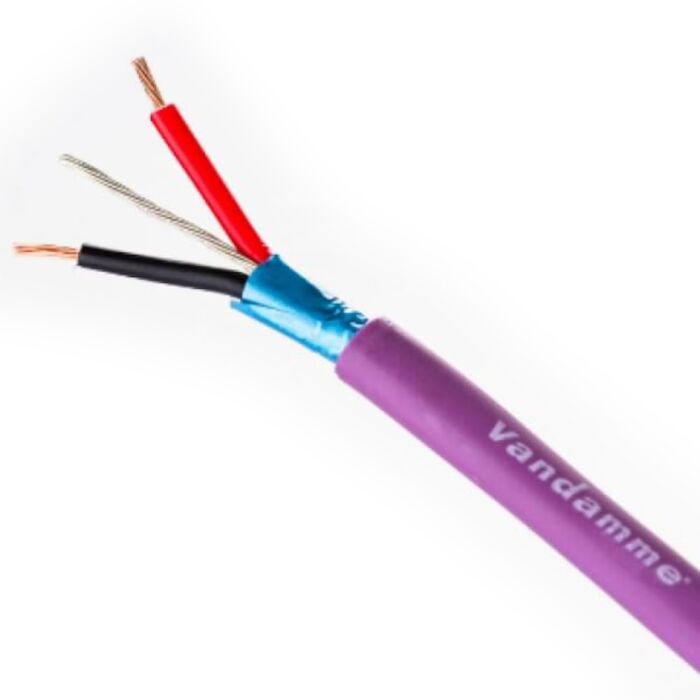

Van Damme Super Purple Series AES 1 pair LSZH Ecoflex - 278-431-000

Available as a 1 pair and 4 and 8 pair multicore versions this cable range provides a solution for the extended distance transmission of 96KHz AES/EBU digital audio – over 150 metres without active equalisation. It is also suitable for long analogue audio runs and any critical balanced data signal that requires low capacitance.

Applications

• Long distance transmission of AES/EBU digital audio signalsInstallation in public buildings, schools and colleges, government premises and marine vessels
• Equipment rack wiring where LSZH materials have been specified
• Any 100 to 110 Ohm balanced data application such as RS422, RS485, DMX512 and timecode

Application Notes

• 22AWG conductors for low capacitance and excellent attenuation figures
• Multicore types are foil screened pairs with polyester overwrap to keep the overall diameter to a
• minimum – pairs should be sleeved with PVC or heatshrink sleeving when broken out for termination
• Electrically engineered for long distance 96KHz digital audio transmission - 150 metres without
• equalisation is well within the cables’ performance
• Fully tested and compliant with the following IEC standards: IEC 60332.1 Fire retardancy of a single
• cable; IEC 60754.1 Amount of Halogen Gas Emissions; IEC 60754.2 Degree of acidity of released gases;
• IEC 61034.2 Measurement of smoke density<
• Ultra-pure oxygen free copper for outstanding sonic integrity
