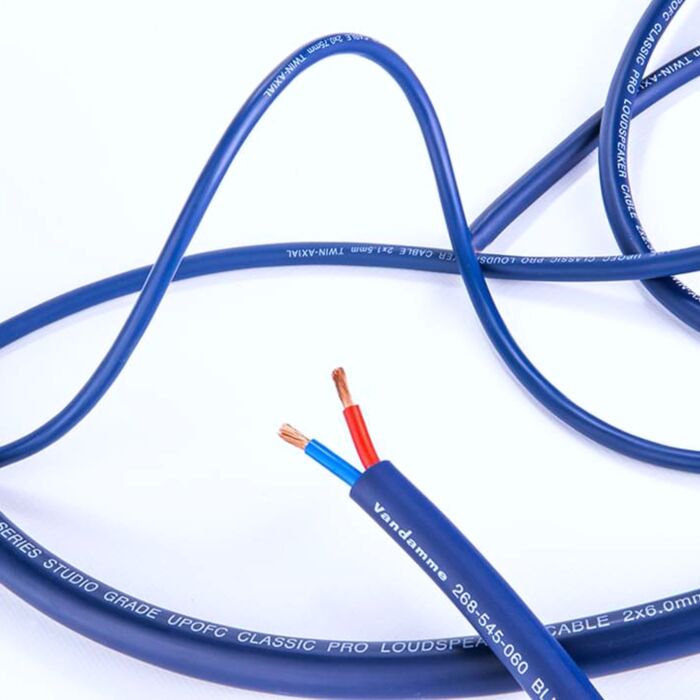

Van Damme Blue Series Passive Speaker Cable
As low as
£0.32
In stock
SKU
CABLE.SPEAKER.VDSP.BLUE
Van Damme Blue Series Studio Grade Speaker Cable caters not only for the Recording Studio environment but also for the Rehearsal Studio, Live, Presentation and Home Audio markets. The PVC outer jacket of these blue series cables makes them highly durable and flexible.
Van Damme Blue Series Studio Grade Speaker Cable caters not only for the Recording Studio environment but also for the Rehearsal Studio, Live, Presentation and Home Audio markets. The PVC outer jacket of these blue series cables makes them highly durable and flexible.
Van Damme Blue Series Studio Grade Speaker Cable caters not only for the Recording Studio environment but also for the Rehearsal Studio, Live, Presentation and Home Audio markets. The PVC outer jacket of these blue series cables makes them highly durable and flexible.
Applications
• Critical studio monitoring
• Guitar amplifier to speaker leads
• Installations where low smoke zero halogen is not a requirement
Application notes
• Conductors use fine stranding for ultimate flexibility
• Reduced OD 2 x 2.5mm will fit XLR connectors and mono jacks
• Ultra pure oxygen free copper for outstanding sonic integrity
Overall Mechanical specification
Conductor - Bare ultra pure oxygen free copper
Insulation - PVC
Overall jacket - Flexible PVC composite sapphire blue RAL 5003
Working voltage - 300/500V
Test voltage - 2000V DC 1 minute
Halogen Emissions - ≤0.30% Halogen acid gases according to IEC 60754-2
Characteristics
Description - 2 x 0.75mm twin-axialOverall Diameter - 5.60mm
Conductor Stranding - 42 x 0.15mm
Conductor resistance - 24.50 Ohm/Km
Description - 2 x 1.50mm twin-axial
Overall Diameter - 6.50mm
Conductor Stranding - 84 x 0.15mm
Conductor resistance - 12.50 Ohm/Km
Description - 2 x 2.50mm twin-axial
Overall Diameter – 7.60mm
Conductor Stranding - 147 x 0.15mm
Conductor resistance - 7.65 Ohm/Km
Description - 2 x 4.00mm twin-axial
Overall Diameter - 12.40mm
Conductor Stranding - 227 x 0.15mm
Conductor resistance - 4.60 Ohm/Km
Description - 2 x 6.00mm twin-axial
Overall Diameter - 14.00mm
Conductor Stranding - 189 x 0.20mm
Conductor resistance - 3.20 Ohm/Km
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Type | Amplifier to Speaker Wire |
| Cable Brand | Van Damme |
| Cable Conductor | - |
| Cable Resistance | - |
| Cable Capacitance | - |
| Cable Screening | - |
| Overall Diameter | - |
| Cable Jacket | PVC |
