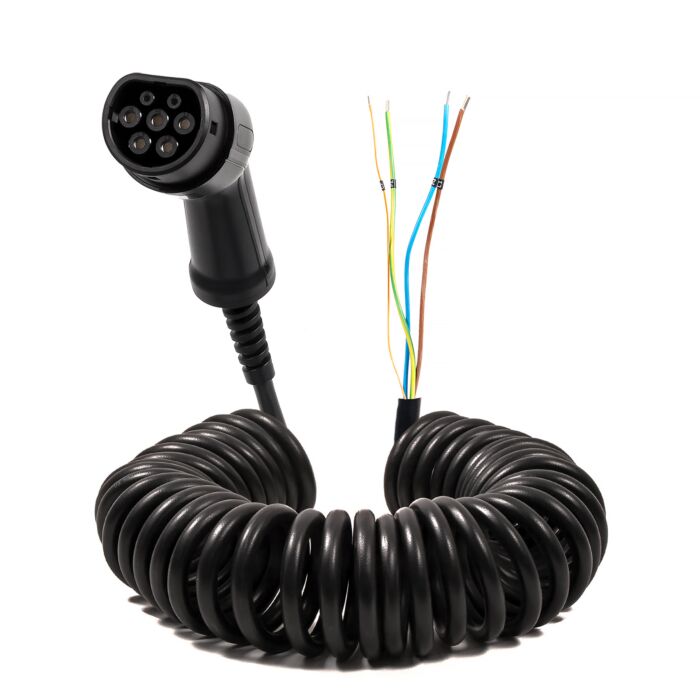

Domestic 7.4kw Curly Type 2 EV Charging Cable - Tethered

N.B. Please note that all cables over 45m will need to be confirmed and are made to order, we do not keep these on the shelf. As max charging amperage will be dropped to 16Amps, to allow for voltage drop over the length of the cable. Please email info@designacable.com before placing your order.

This Type2 EV charging cable is assembled in Nottingham UK and meets all international standards. This cable has a Type 2 EV connector at one side only (vehicle connector). They should only be used as direct replacements for 'Tethered' EV wall chargers. Reasons for replacing could be either a damaged cable, or to increase the length of the supplied cable, extending the reach of your wall charging point.

Length Guide

• Short - 1.5m extends to 3m
• Long - 1.7m extends to 5m

Features

• Made in Nottingham UK
• Lengths Available In 'Short' and 'Long'
• Compatible with integrated car & ChargePoint locking mechanisms
• Single Phase up to 32amps (7.4kW) @ 230v/240v
• Flexible and UV stable cable
• Integral cable strain relief for maximum durability
• Resin filled connectors eliminate water ingress and offer unrivalled cable retention
• Cable and connector can withstand being run over

Standards

• Type 2 connectors. According to IEC 62196-2
• H07BZ5-F Cable. 3core 6mm² (L,N,E) + 0.5 mm² (CP). According to IEC 62893
• Assembly and Testing. According to IEC 62196-1
• IP Protection Class: IP55 when connected
• IMDS registered
• UKCA & CE Certified
