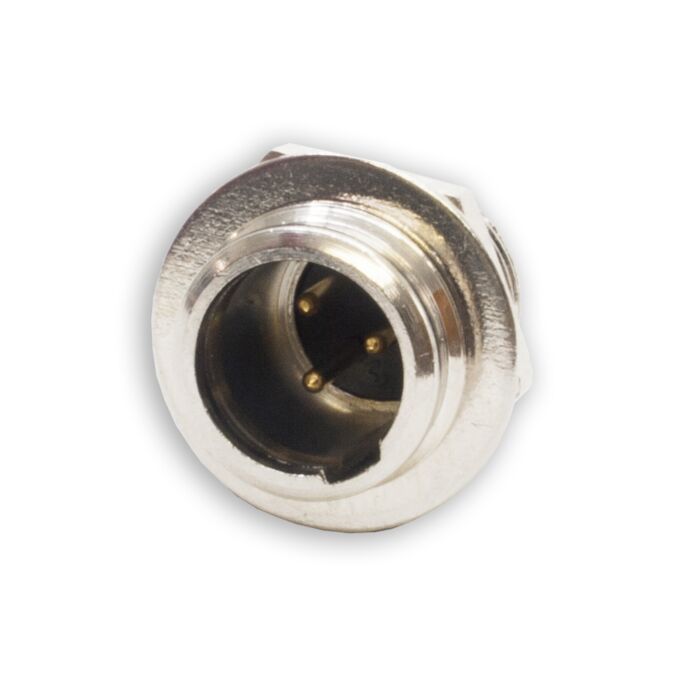

REAN RT3MP Mini 3 Pin XLR Circular Chassis Panel Mount Connector

RT3MP

3 pole TINY xlr male chassis connector, nickel housing, gold plated contacts, max. panel thickness: 6 mm

• Front mountable design
• Shielded system – high noise immunity and EMI protection
• Watertight chassis connector, even in unmated condition

Technical Spec

Electrical

• Contact resistance - < 10 mΩ
• Dielectric strength - > 0.5 kVdc
• Insulation resistance - > 1 GΩ
• Rated current per contact - < 5 A

Mechanical

• Lifetime - > 5000 mating cycles
• Panel thickness - max. 6 mm
• Wiresize - 0.22 mm²
• Wiresize - 24 AWG
• Wiring - Solder contacts

Material

• Contact plating - Au
• Contacts - Brass (CuZn39Pb3)
• Insert - PA 6.6 30 % GF
• Shell - ZuAl4Cu1
• Shell plating - Nickel

Environmental

• Solderability - Complies with IEC 68-2-20
• Temperature range - -30 °C to +85 °C
