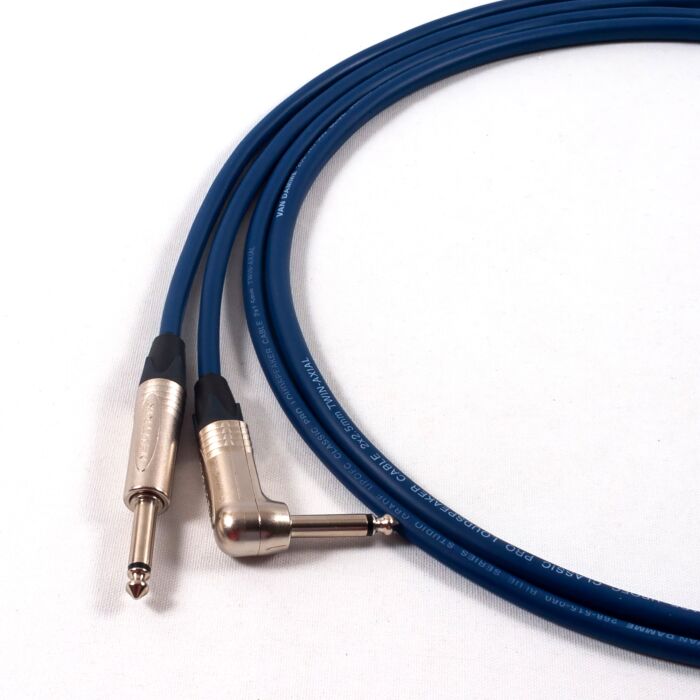

Van Damme Studio Grade Jack to Angled Jack Passive Speaker Lead
As low as
£18.25
In stock
SKU
NP2X-VDSPBE-PRNT-NP2RX
Multibuy discounts calculated at checkout
High quality speaker leads terminated in Genuine Neutrik 1/4" Jacks. Perfect for connecting your Guitar Head to Cab. Van Damme Blue Series cable has a flexible PVC outer jacket. The conductors are 'bare ultra pure oxygen free copper' with fine stranding to further improve on the overall flexibility. A highly sought after cable with an excellent and well-reviewed sound!
High quality speaker leads terminated in Genuine Neutrik 1/4" Jacks. Perfect for connecting your Guitar Head to Cab. Van Damme Blue Series cable has a flexible PVC outer jacket. The conductors are 'bare ultra pure oxygen free copper' with fine stranding to further improve on the overall flexibility. A highly sought after cable with an excellent and well-reviewed sound!
- Van Damme Blue Series 1.5mm Speaker cable.
- Neutrik NP2X and NP2RX 1/4" Mono Jacks.
- Manufactured using audiophile grade 3.5% silver solder
The Truth behind Gold and Silver Connectors........
Silver is the better conductor however gold is highly resistant to corrosion so is favoured for its durability.
Choosing the Conductor Size....
|
Conductor Size |
Recommended Wattage |
| 1.5mm | 0 - 200 watts |
| 2.5mm | 200 - 600 watts |
| 4mm | 600 - 2000 watts |
| 6mm | 2000 watts + |
By increasing the conductor size, you decrease resistance. Your speaker will have a 'Wattage' rating, it is usually marked on the enclosure, use our guide above to match your Wattage to the appropriate size conductor.
Cable Properties |
|||
| Conductor Size | Overall Diameter | Conductor Stranding | Conductor Resistance |
| 1.5mm |
6.50mm |
84 x 0.15mm | 12.50 Ohm/Km |
| 2.5mm |
7.60mm |
147 x 0.15mm | 7.30 Ohm/Km |
| 4mm> |
11.00mm |
227 x 0.15mm | 4.60 Ohm/Km |
| 6mm |
14.00mm |
189 x 0.20mm | 3.20 Ohm/Km |
| Delivery Speed | Made to Order - Next Day Delivery Available |
|---|---|
| Cable Capacitance | 2 x 1.50mm twin-axial Overall Diameter - 6.50mm |
| Cable Resistance | Conductor resistance - 12.50 Ohm/Km |
| Cable Conductor | Conductor Stranding - 84 x 0.15mm |
| Cable Screening | - |
| Cable Jacket | Flexible PVC composite sapphire blue RAL 5003 |
| Overall Diameter | - |
| Cable Brand | Van Damme |
| Application | Tour Grade |
